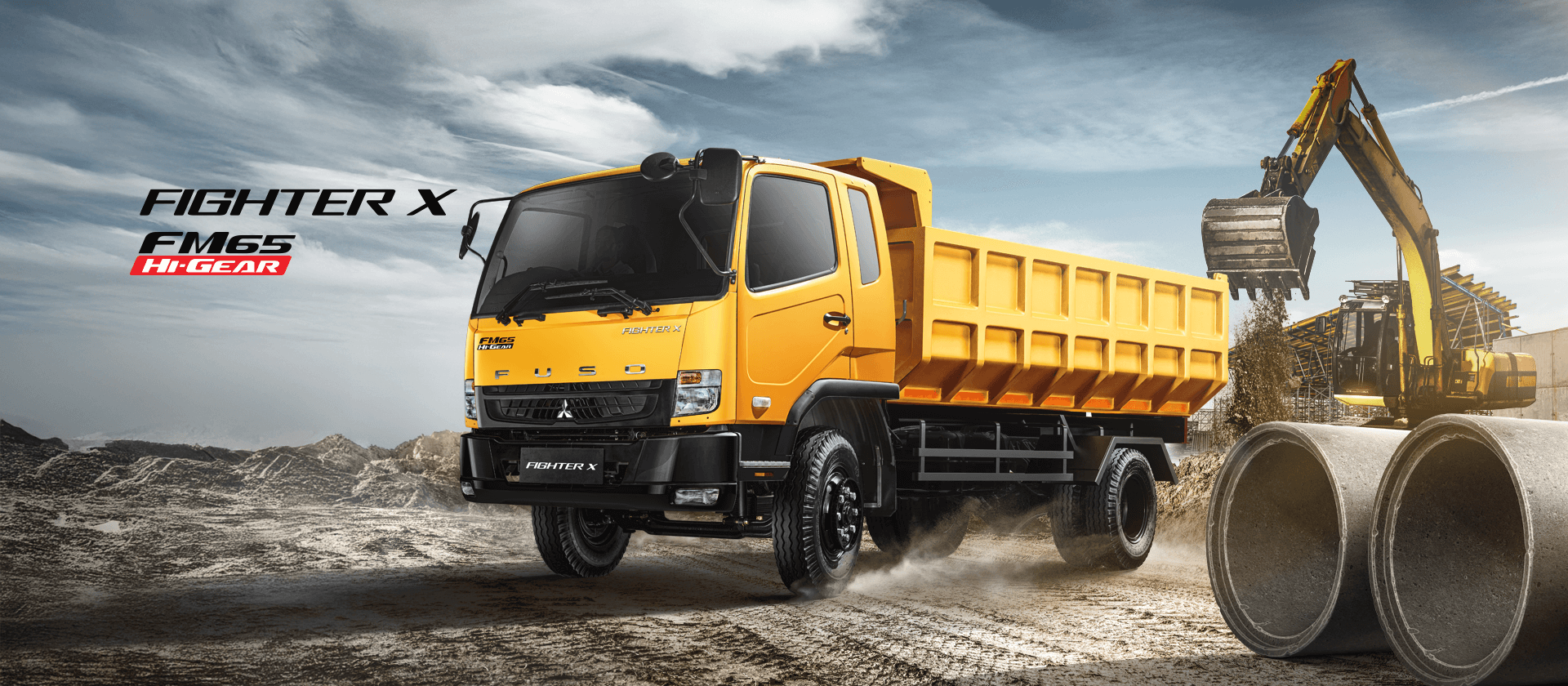

FM65FS Hi-Gear
- 825.200.000
- Chassis on the road
- 6 Ban
- 240 PS M/T
Spesifikasi
Dimensi
| Jarak Sumbu Roda | mm | 4.280 |
|---|---|---|
| Panjang Keseluruhan | mm | 7.510 |
| Lebar Keseluruhan | mm | 2.477 |
| Tinggi Keseluruhan | mm | 2.698 |
| Jarak roda depan kiri-kanan | mm | 1.925 |
| Jarak roda belakang kiri-kanan | mm | 1.856 |
Berat
| Berat chassis termasuk kabin | kg | 2.050 |
|---|---|---|
| Depan | kg | 2.900 |
| Belakang | kg | 2.150 |
| Max G.V.W | kg | 16.000 |
| Depan | kg | 6.000 |
| Belakang | kg | 10.000 |
Kemampuan
| Kecepatan Maksimum | km/jam | 102 |
|---|---|---|
| Daya Tanjak dengan Max G.V.W | % | 43 |
| Radius putar minimum | m | 7.8 |
Mesin
| Model | 6M60 – DAT5 | |
|---|---|---|
| Tipe | 4 Stroke-cycle water cooled direct injection turbocharged diesel engine | |
| Diameter X Langkah | mm | 118 X 115 |
| Isi Silinder | cc | 7.545 |
| Daya Maksimum | PS/rpm | 240/2.400 |
| Torsi Maksimum | kg.m/rpm | 80/1.200 – 1.800 |
Transmisi
| Model | M070S6 | |
|---|---|---|
| Tipe | 6 gigi maju dan 1 gigi mundur | |
| Perbandingan gigi akhir | 7.166 | |
| Tipe Kopling | Hydraulic control, coil spring type, single dry plate with air pressure assistance | |
Kemudi
| Tipe | Ball nut type with integral type hydraulic power booster, telescopic & tilt steering column with steering lock | |
|---|---|---|
Suspensi
| Depan | Laminated leaf springs dengan shock absorber | |
|---|---|---|
| Belakang | Laminated leaf springs | |
rem
| Rem kaki (Service brake) | Full Air, dual circuit, wedge type | |
|---|---|---|
| Rem tangan (Parking brake) | Spring loaded type on rear wheels by hand controlvalve | |
| Rem pembantu | Sistem pengereman gas buang (Exhaust Brake) | |
Ban
| Ban Depan | Tunggal, 11,00-20-16PR | |
|---|---|---|
| Ban Belakang | Ganda, 11.00-20-16PR | |
Sistem Kelistrikan
| ACCU | volt | 24 |
Bahan Bakar
| Tangki | liter | 200 |
Kabin
| Tipe | All steel with Tilt Cab (Kabin Jungkit) | |
|---|---|---|
Chassis Kokoh
- Chassis Kokoh, tangguh dan Tahan lama.
